IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE802.3x Flow Control and BackpressureGeneral
Ports: 5 10/100 Mbps N-Way switch T ports
Cable: Cat3, 4, 5 UTP/STP
Duplex modes: all ports (up to 200 Mbps)
Uplink: all ports Auto MDI/MDX (Auto Uplink)
Protocol: CSMA/CD
Switch architecture: store and forward switch technology
Filter/forward rate:
– 10BaseT: 14,880pps (packets per second)
– 100Base-TX: 148,800pps (packets per second)
MAC address entries: 1000
Buffer size: 48kBytesLEDs
Power
10/100 Mbps Link (1 per port)
Collision (1 per port)Power
External AC adapter: 9 V, 0.5 AEnvironmental
Operating temperature: 0 – 40˚C (32 – 104˚F)
Storage temperature: -10 – 65˚C (10 – 149˚F)
Humidity: 10 – 90% (non-condensing)
Physical size: 125 x 72 x 25 mm (5 x 3 x 1 in.)Package Contents
5-Port Fast Ethernet Switch
Power adapter
User manual
Intellinet 5-port 10/100Mbps SwitchMay 12, 2025May 12, 2025

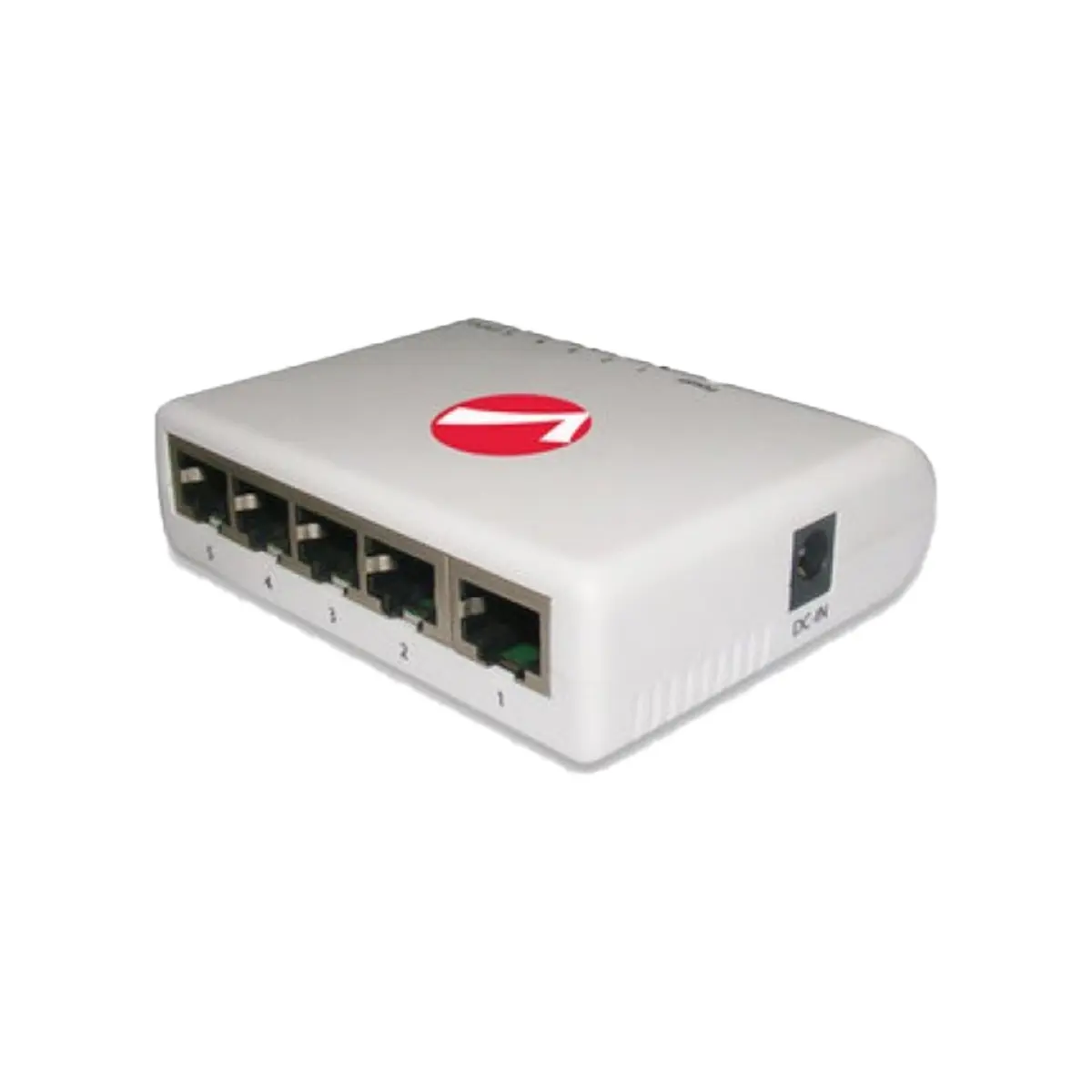

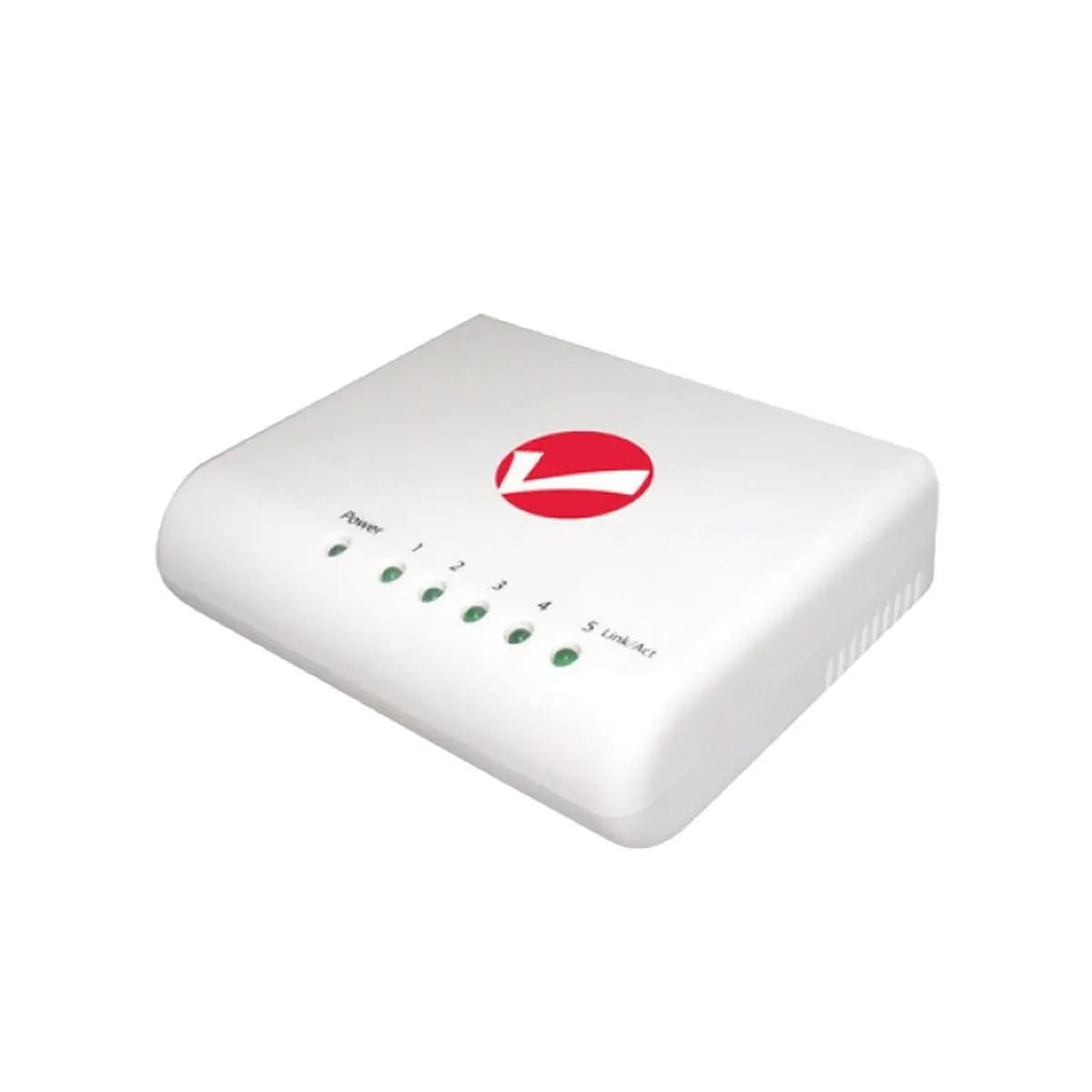

Intellinet 5-port 10/100Mbps Switch
- Five 10/100 auto-sensing ports – automatically detect optimal network speeds
- Supports any combination of 10 Mbps or 100 Mbps network devices
- Compact case
- LEDs for Link, Activity
- 10/100 Mbps and half/full duplex
- NWay auto-negotiation
- Non-blocking design
- Store and forward switching architecture
- Supports 1000 MAC address entries
- 48k Bytes buffer memory
Description
Easily add more computers or other Ethernet devices to your network
The INTELLINET NETWORK SOLUTIONS 5-Port Fast Ethernet Office Switch is perfect for the small and medium-size business looking a durable switch that is reliable and easy to install.
The Fast Ethernet Office Switch connects up to five computers, servers, printers, switches or any other Ethernet devices at 10 or 100 Mbps over Ethernet cables, and works with any operating system.
Easy to Install and Maintain. The auto features of this switch make installation Plug and Play and hassle free. There is no configuration required, and you don’t need to worry about using special cables for uplink ports, since each port is equipped with Auto MDI/MDI-X crossover.
