Asustor AS6508TUmme SadiaMarch 5, 2025March 5, 2025

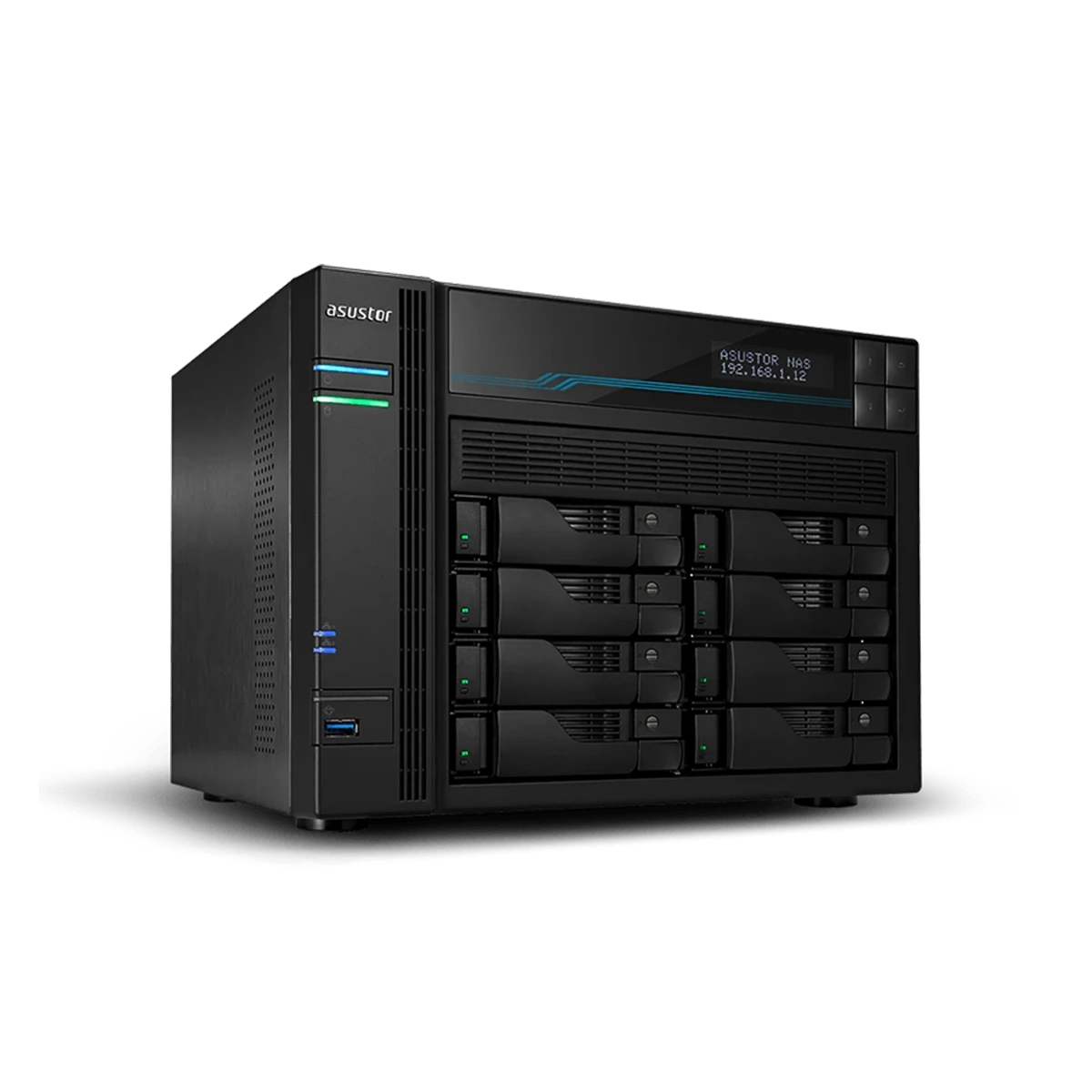

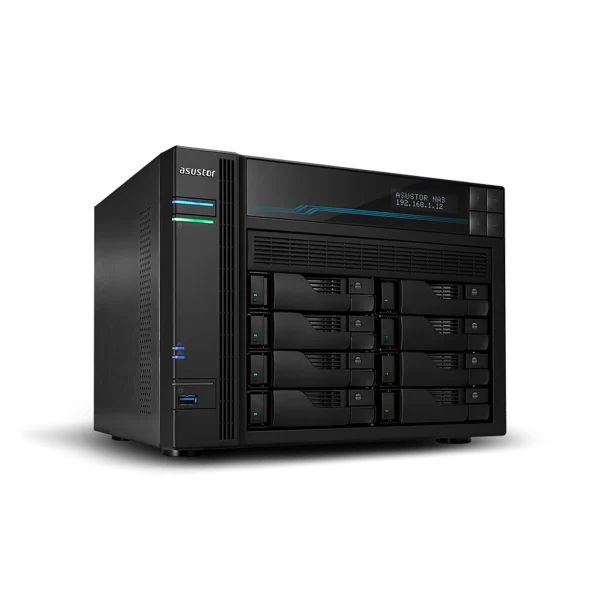

Asustor AS6508T

    • 8 Bay NAS
    • Intel ATOM C3538 2.1GHz Quad-Core Processor
    • 8GB DDR4 (Expandable up to 64GB) ​
    • ADM 4.1 Onwards
    • 8 x SATA3 6Gb/s, 5″/2.5″ HDD/SSD
    • 2 x M.2 PCIe (NVMe) or SATA SSD for SSD cache Drive Slots
    • Maximum Drive Bays with Expansion Unit: 16
    • RAID Type: Single disk, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
    • 2 x 10 Gigabit Ethernet (10G/1G)
    • 2 x 2.5 Gigabit Ethernet (2.5G/1G/100M)
    • 2 x USB 3.2 Gen 1
    • User Quota
    • AES 256-Bit Encryption
    • Maximum Number of Users: 4096
    • Maximum Number of Concurrent Connections: 512
    • Supports Windows Active Directory
    • Supports Wake-on-LAN (WOL)
    • Supports Wake-on-WAN (WOW)
    • Up to 64 channels in 720p on single live view display
    • Maximum IP Cam 64 (4 Free Camera Licenses; Additional Licenses to be Purchased)
    • Find More about AS6508T
Categories: , ,

Hardware Specifications
CPU Model Intel ATOM C3538
CPU Architecture x64 64-bit
CPU Frequency Quad-Core 2.1GHz
Memory 8GB SO-DIMM DDR4 Compatibility
Memory Module Pre-installed 8GB (1x 8GB)
Total Memory Slots 2
Memory Expandable up to 64GB (2x 32GB) Installation Guide

  • Support mixed capacity
Flash Memory 4GB eMMC
Drive Bays 8
M.2 Drive Slots 2 Installation Guide
Compatible Drive Type Compatibility
  • 3.5″ SATA HDD
  • 2.5″ SATA HDD
  • 2.5″ SATA SSD
  • M.2 2280 NVMe
  • M.2 2280 SATA 3
  • M.2 2260 SATA 3
  • M.2 2242 SATA 3
Maximum Drive Bays with Expansion Unit 16
Supports Hot Swappable Drives
Expansion 2x USB 3.2 Gen 1
Network 2x 10 Gigabit Ethernet(10G/1G);
2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
Multimedia Output N/A
System Fan 2x 120mm
LCD Panel
Power Supply Unit / Adapter 250W x1
Input Power Voltage 100V to 240V AC
Certification FCC, CE, VCCI, BSMI, C-TICK
Warranty 3 Years
Power Consumption 66.9W (Operation);
37.2W (Disk Hibernation);
Noise Level 22dB (HDD idle)
Operation Temperature 0°C~40°C (32°F~104°F)
Humidity 5% to 95% RH
Size 215.5(H) x 293(W) x 230(D) mm
Weight 6.2 (kg) / 13.67 (lb)



Description

Asustor AS6508T; Dual 10 and 2.5 Gigabit ports

The all new Lockerstor series of NAS feature dual Intel 10-Gigabit Ethernet ports as well as dual Realtek 2.5-Gigabit Ethernet ports. With a managed switch that supports multiple speeds, take advantage of up to 20 gbps of speed with both 10-Gigabit ports or up to 5 gbps on both 2.5-Gigabit ports.

SSD Cache

The Asustor AS6508T recently updated ADM features an updated Linux Kernel and additional performance enhancements. The Lockerstor series introduce M.2 PCIe NVMe SSD caching increasing performance.

1. Lockerstor NVMe SSD caching increases performance by up to 60%.
2. Lockerstor NVMe SSD caching is faster than if all bays were filled with SATA SSDs while remaining cheaper.

With dual 10-Gigabit Ethernet, bottlenecks on NVMe SSDs have been lifted, making the Lockerstor one of the fastest NAS devices ever.

Eight Bays with Flexible M.2 SSD Caching

The AS6508T supports online capacity expansion, allowing for the flexible purchase of enterprise storage equipment. When your budget and storage requirements are smaller, you can purchase a smaller number of hard disks.

24/7 Reliability and Durability

All ASUSTOR NAS are designed for and are suitable for 24/7 use. ASUSTOR NAS devices have also undergone rigorous tests, such as drop tests and burn tests to test durability in extreme conditions. Heatsinks were added to sensitive components to dissipate heat, helping to maintain the longevity of the device.

Comprehensive Backup Solutions

ASUSTOR’s comprehensive backup solution provides more than twelve backup options, including, but not limited to Amazon S3, Dropbox, Google Drive, and OneDrive. ASUSTOR Backup Plan for Windows as well as Time Machine for macOS provide easy backups for desktop and laptops while MyArchive removable hard drives provide long term storage. Btrfs is now supported and with Snapshot Center, can take snapshots of your information in the event of unintentional modification. Restore previous versions easily with Snapshot Center.
