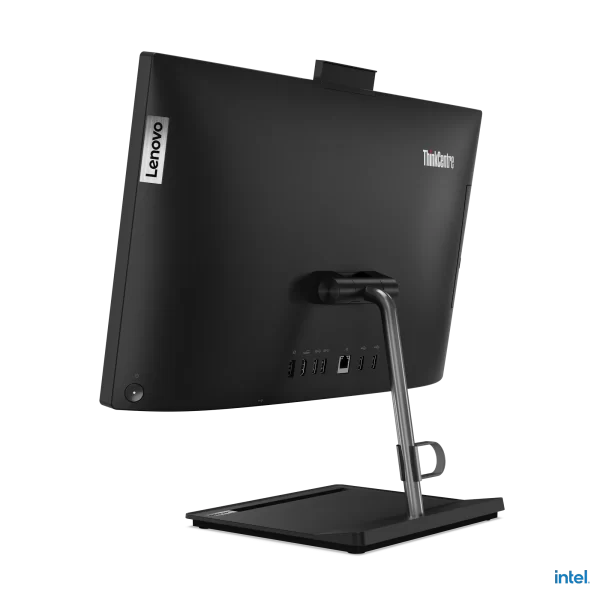

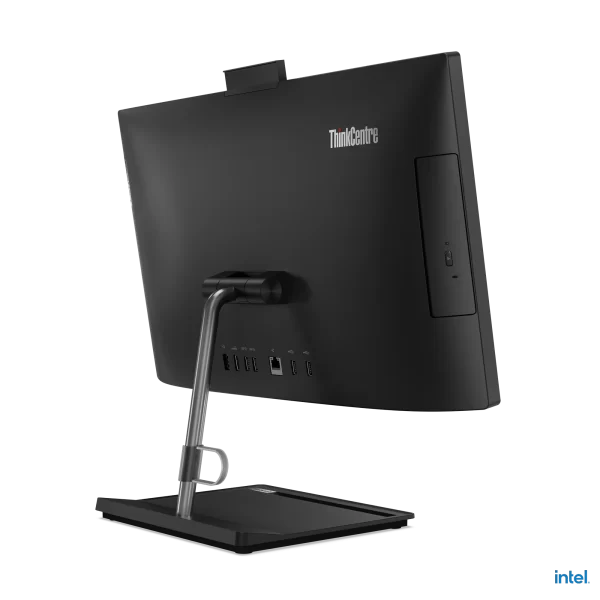

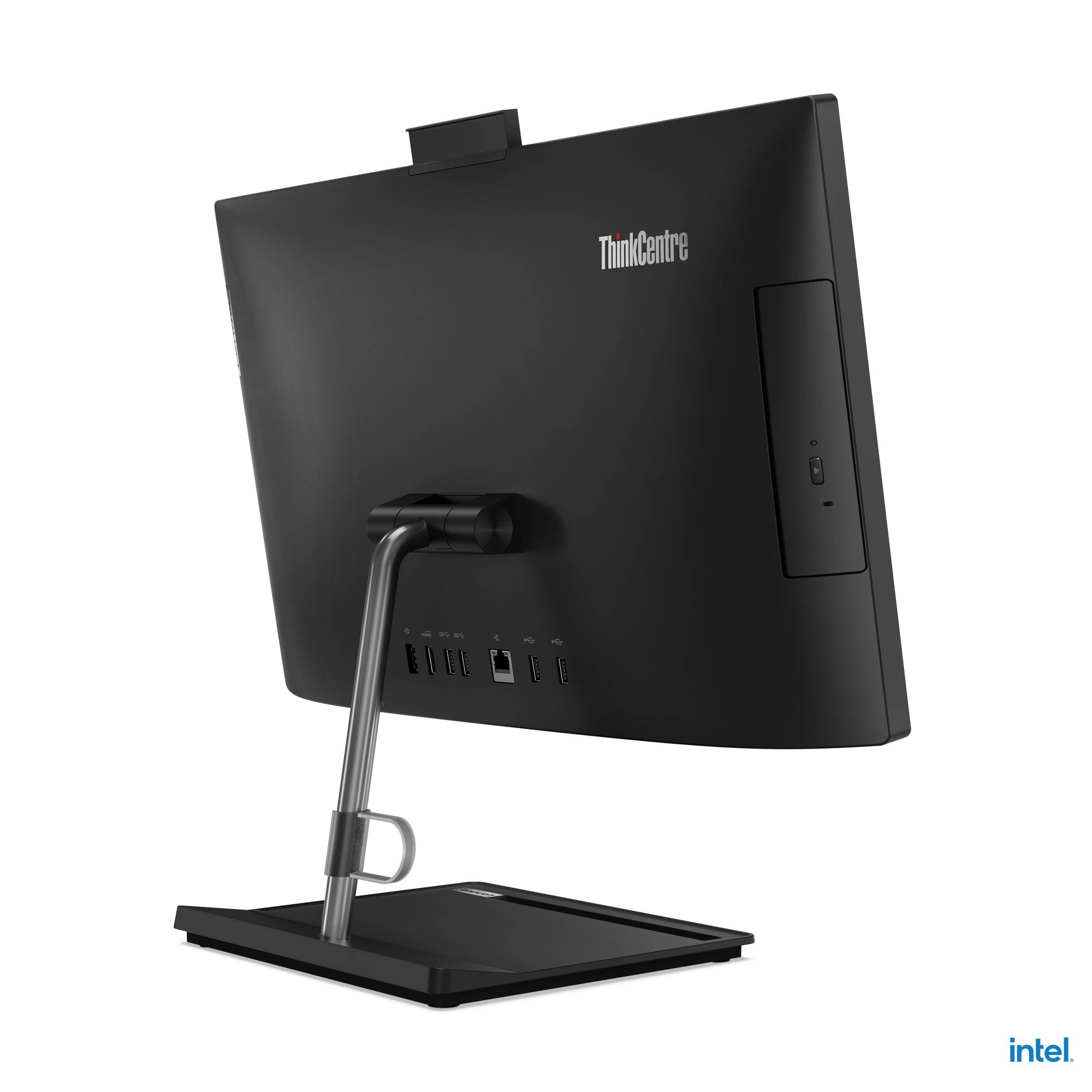

ThinkCentre (All in One) Neo 30a 22, Intel® Core™ i5-12450H

Processor	Intel® Core™ i5-12450H, 8C (4P + 4E) / 12T, P-core 2.0 / 4.4GHz, E-core 1.5 / 3.3GHz, 12MB
Graphics	Integrated Intel® UHD Graphics
Chipset	Intel® SoC Platform
Memory	1x 8GB SO-DIMM DDR4-3200
Memory Slots	Two DDR4 SO-DIMM slots, dual-channel capable
Max Memory	Up to 16GB DDR4-3200
Storage	256GB SSD M.2 2280 PCIe® 4.0×4 NVMe® Opal 2.0
Storage Support	Up to two drives, 1x 2.5″ HDD + 1x M.2 SSD • 2.5″ HDD up to 1TB • M.2 SSD up to 512GB For installing HDD storage, assembly kits are needed. The kits only come with HDD models.
Card Reader	No card reader

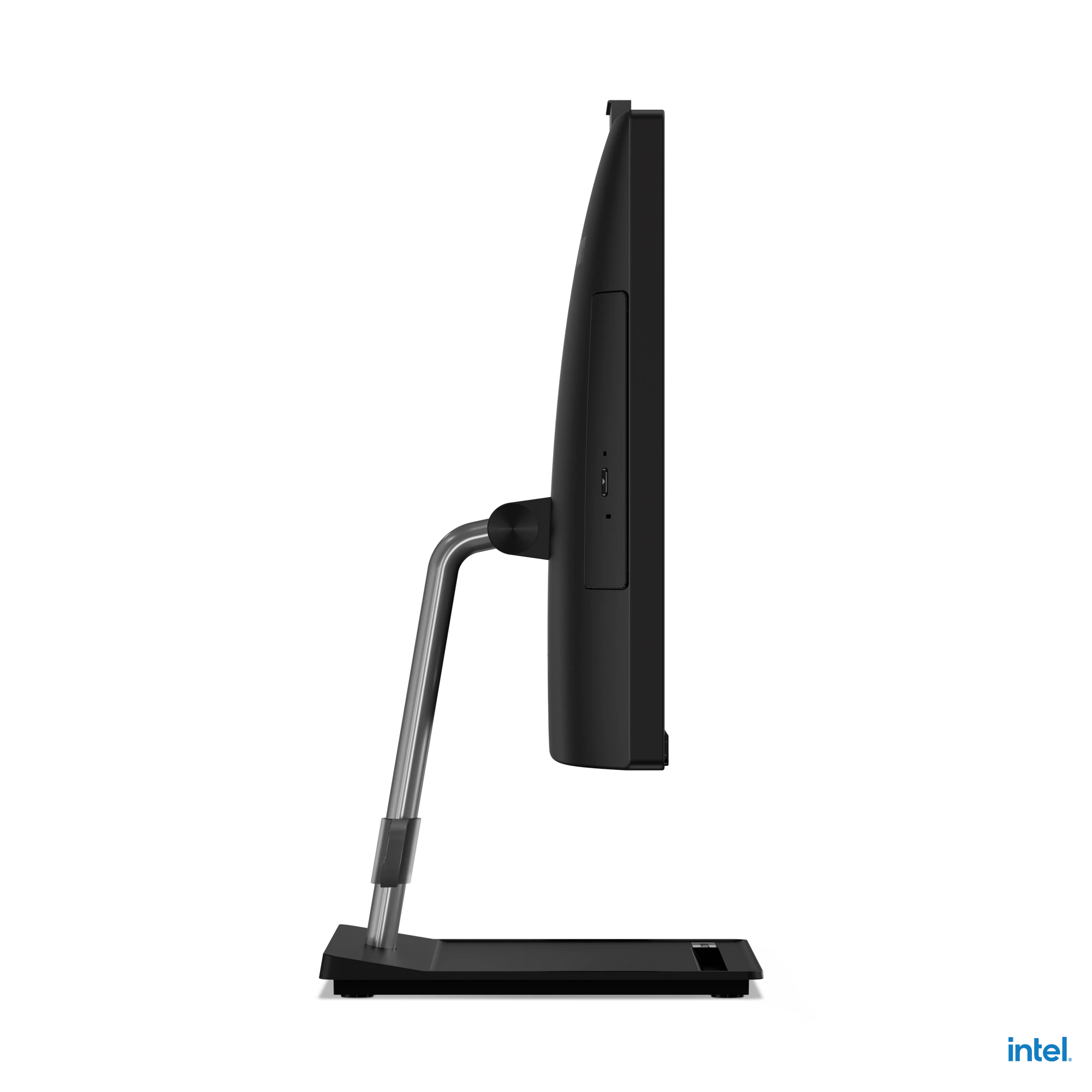

Optical	DVD±RW
Audio Chip	High Definition (HD) Audio, Realtek® ALC256 codec
Speakers	3Wx2
Camera	HD 720p
Microphone	Mono
Power Supply	90W 89% Adapter
DESIGN

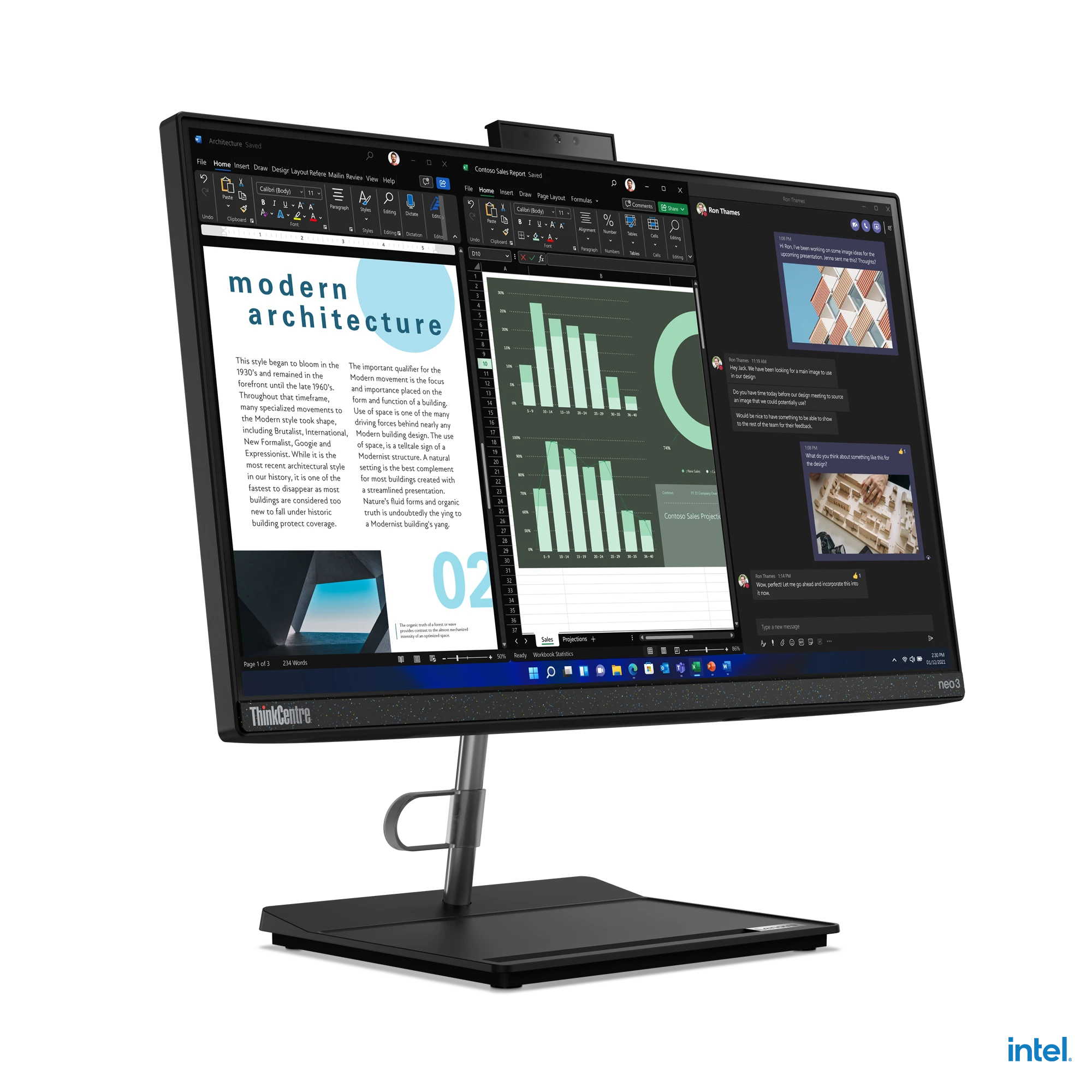

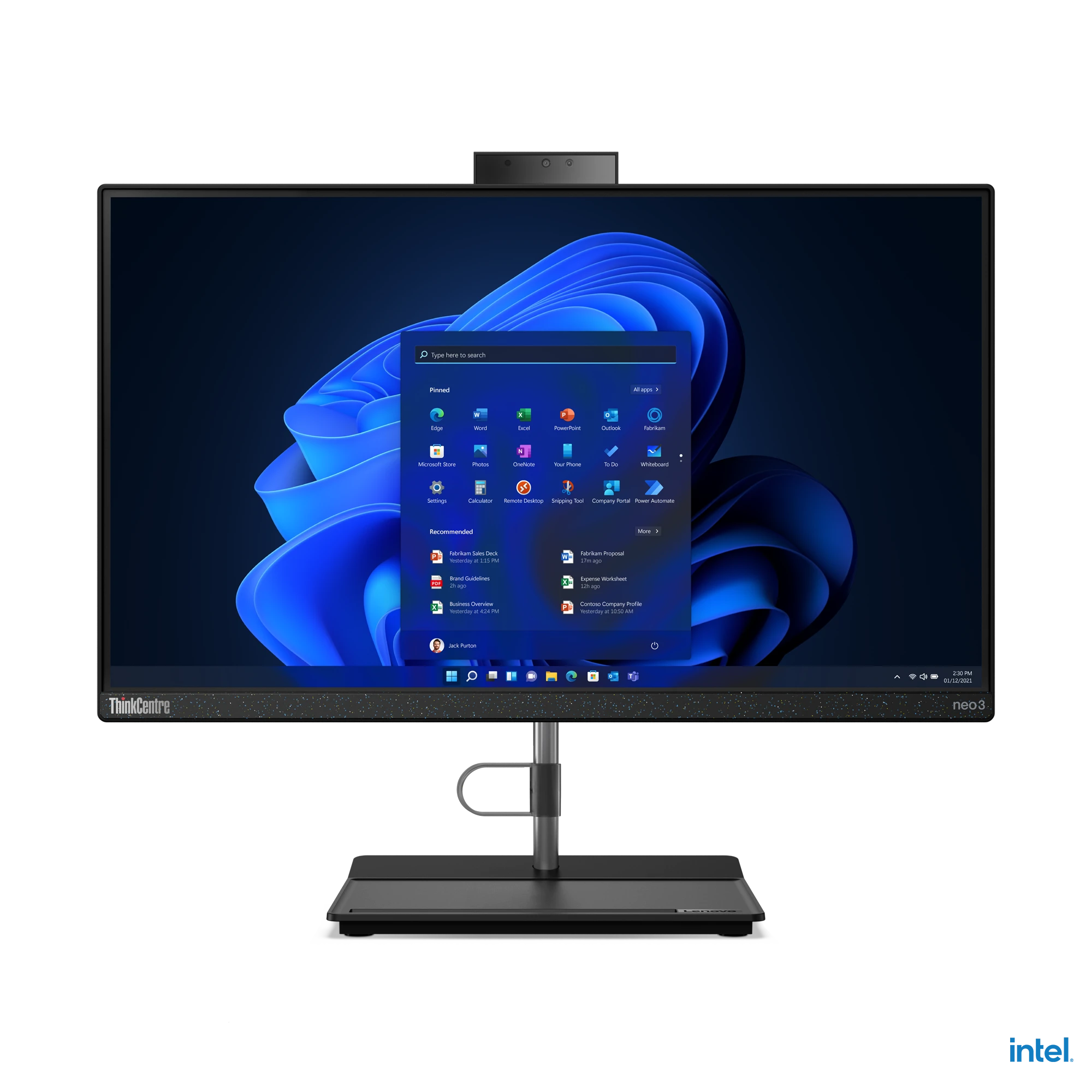

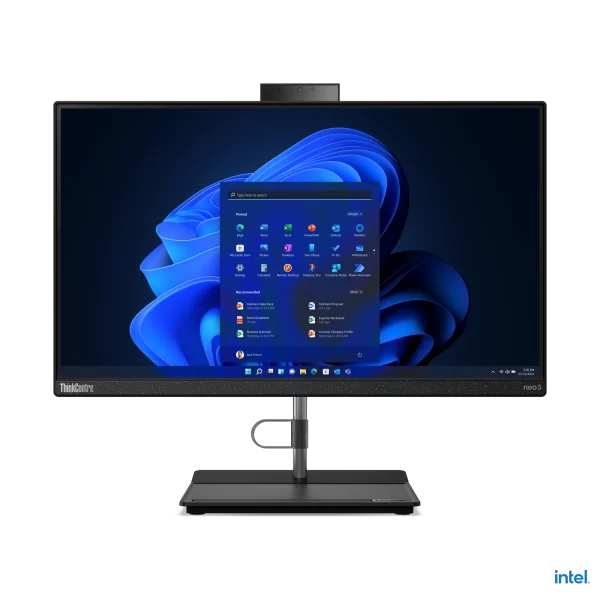

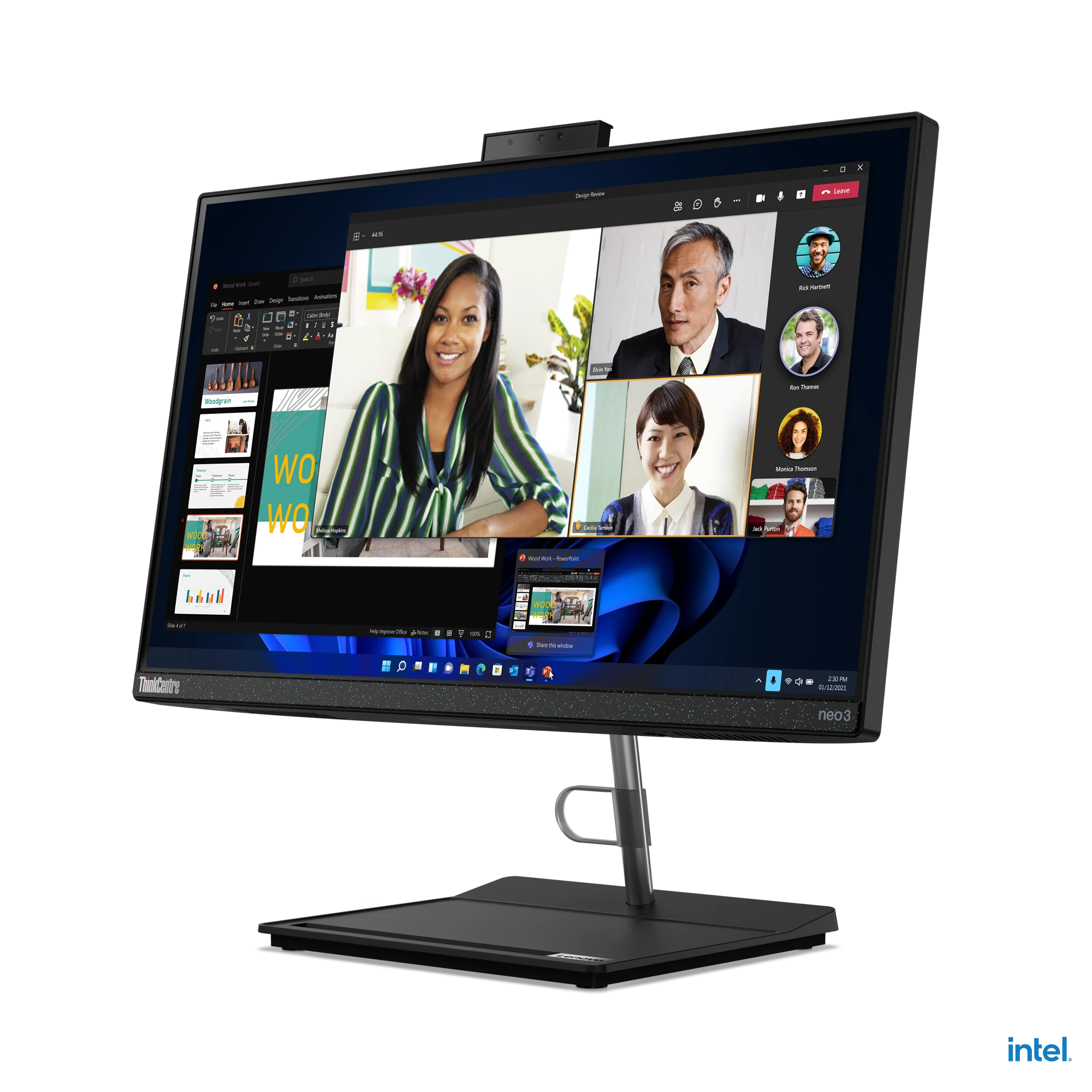

Display	21.5″ FHD (1920×1080) IPS 250nits Anti-glare, 72% NTSC
Touchscreen	None
Keyboard	USB Calliope Keyboard, Black, English (UK)
Mouse	USB Calliope Mouse, Black
Expansion Slots	Two M.2 slots (one for WLAN, one for SSD)
Case Color	Raven Black
Stand	Monitor Stand
Mounting	None
Pen	Pen Not Supported
Form Factor	AIO (21.5 inches)
Dimensions (WxDxH)	490.3 x 207.5 x 405.39 mm (19.3 x 8.71 x 15.96 inches)
Weight	Around 5.7 kg (12.6 lbs)
CONNECTIVITY
Ethernet	Integrated 100/1000M
WLAN + Bluetooth	Intel® Wi-Fi® 6 AX201, 802.11ax 2×2 + BT5.1
WWAN	Non-WWAN

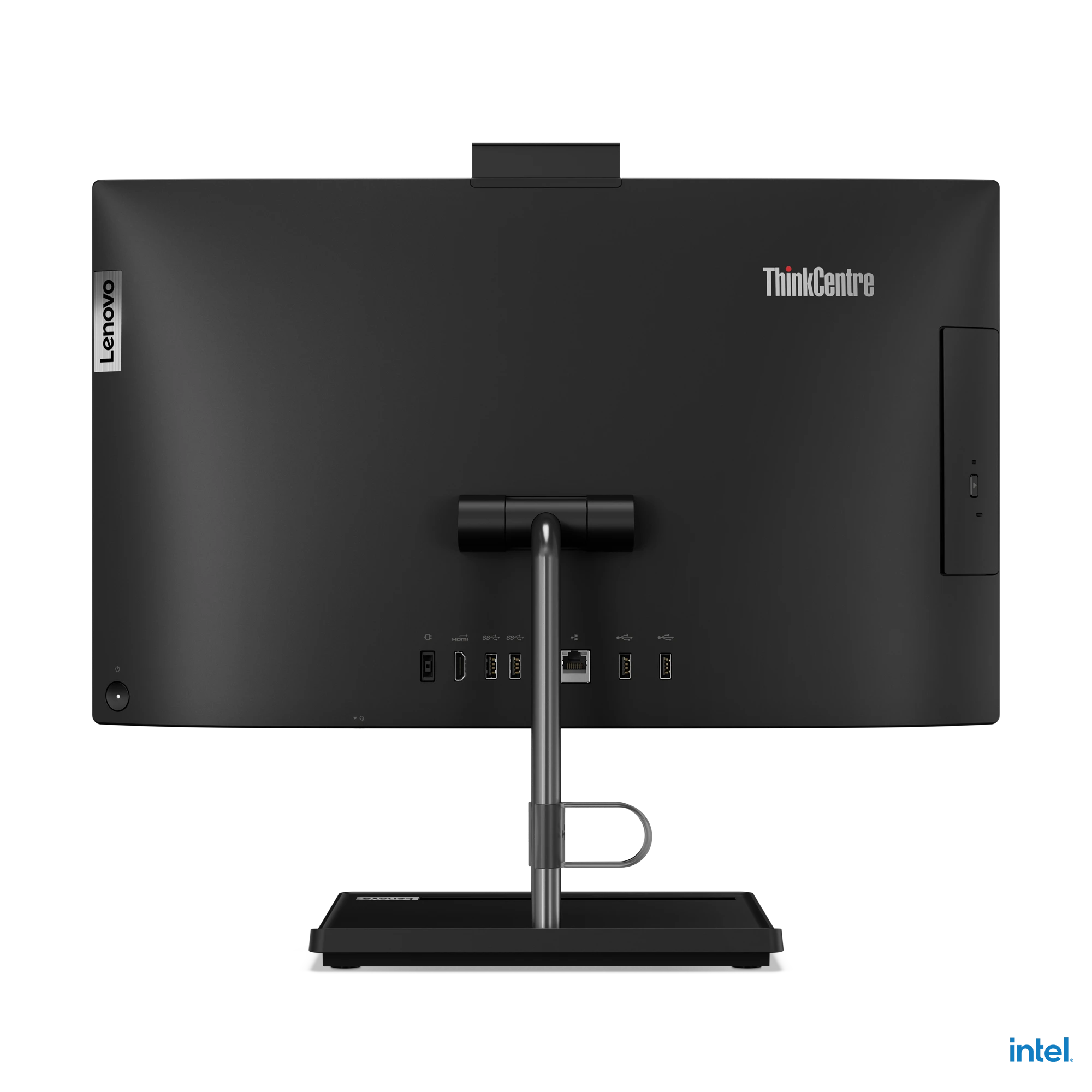

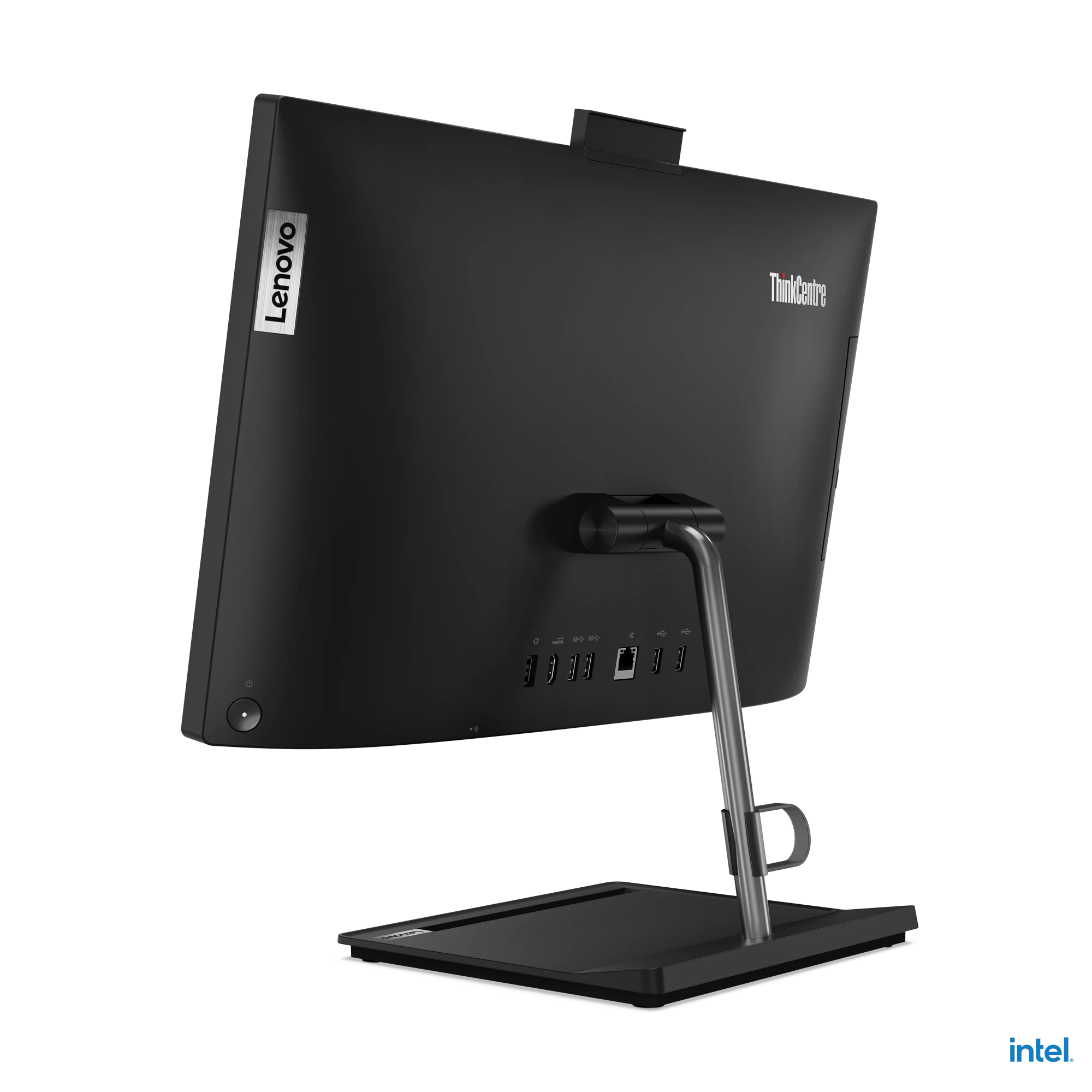

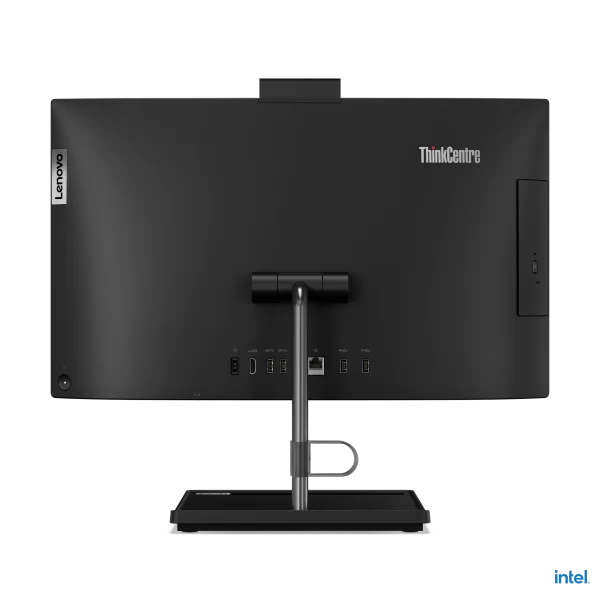

Rear Ports	2x USB 2.0 2x USB 3.2 Gen 2 1x HDMI®-out 1x Ethernet (RJ-45) 1x power connector
Left Ports	None
Optional Left Ports (configured)	None
Right Ports	None
Optional Right Ports (configured)	None
