| Category | Item | Specification |
|---|---|---|
| Speaker | Speaker Component | Φ45 mm full-frequency speaker |
| Sensitivity | 95 ±3 dB / 1W / 1m | |
| Impedance | 8 Ω | |
| Power | 3 W | |
| Max Sound Pressure Level | 100 dB | |
| Gooseneck Microphone | Sensitivity | −36 ±2 dB |
| Impedance | 680 Ω | |
| Max Sound Pressure Level | 110 dB | |
| LCD Display | Size | 4.3 inches |
| Resolution | 480 × 272 | |
| Viewing Angle (L/R/U/D) | 70° / 70° / 50° / 70° | |
| Color | 24-bit (8R8G8B) | |
| Audio Jack | Audio Input | 3.5 mm audio jack |
| Audio Output | 3.5 mm audio jack | |
| Buttons | Speed Dial Keys | 10 physical buttons (support 10 × 3 programmable virtual buttons) |
| Page Up & Down Keys | 1 + 1 | |
| Answer Button | 1 | |
| Hang-up Button | 1 | |
| Mute Button | 1 | |
| Volume Adjustment Keys | 1 + 1 | |
| Reset Button | 1 | |
| Audio | Audio Codecs | G.722, G.711 A-law, G.711 U-law, Opus |
| Audio Streaming | MP3, 8–48 kHz sampling rate, 64–320 kbps, mono or stereo | |
| Network | Network Interface | 10/100 Mbps, supports PoE IEEE 802.3af/at |
| Network Protocols | SIP (RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP, RTSP, RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, ARP, SSH | |
| Administration | Configuration | Web management interface or auto provisioning server |
| Provisioning | MQTT IoT Protocol | |
| Manufacturer | ZYCOO Communications LLC | |
| Electrical | Maximum Input Voltage | 500 mVrms |
| Power Input | DC 12V / 1A or PoE IEEE 802.3af/at | |
| Memory | 256 MB DDR3, 256 MB Flash | |
| Rated Load of Dry Contact | AC 125V / 0.3A, DC 30V / 1A | |
| RS485 | Half duplex | |
| Network Interface | RJ45 × 1 | |
| Mechanical | Casing | ABS plastic panel, aluminum profile base |
| Dimensions | 210 × 190 × 46 mm | |
| Weight | 1.2 kg | |
| Environmental | Operating Temperature | −20°C to 50°C (−4°F to 122°F) |
| Storage Temperature | −40°C to 70°C (−40°F to 158°F) | |
| Approvals | Certifications | EN 55032:2015, EN 55035:2017, EN 61000-3-2:2019, EN 61000-3-3:2019, EN 62368-1:2020, FCC Part 15B |
ZYCOO M100 Network ConsoleDecember 22, 2025
ZYCOO M100 Network Console
- ZYCOO G116 is a high-performance FXO analog gateway designed for small and medium-sized enterprises
- It delivers high-quality, stable, and reliable voice communication solutions
- The G-Series FXO VoIP Gateway uses the standard SIP protocol for compatibility and flexibility
- Equipped with 8 FXO ports, it allows seamless integration of traditional telephone lines with VoIP networks
- Ideal for businesses looking to bridge analog telephony with modern IP-based systems
Description

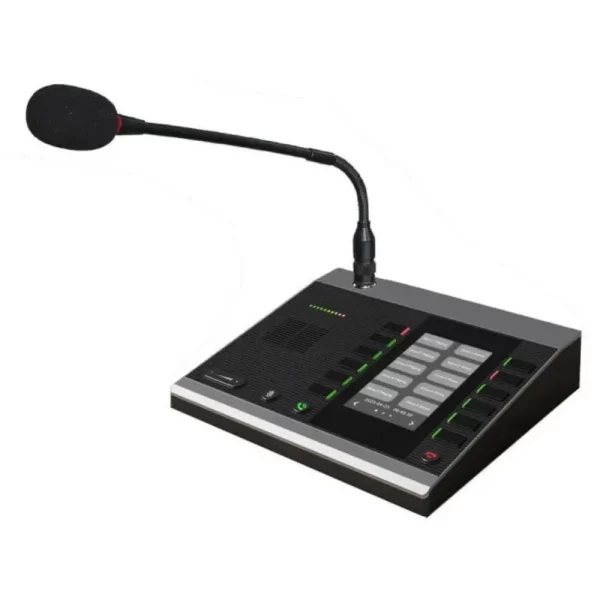

The M100 Dispatch Microphone Console is a versatile and high-performance SIP-enabled device for seamless communication. It features 30 programmable fast keys that can be used for paging, intercom, music playback, outbound phone calls, and emergency alarm activation. With multicast and peer-to-peer technology, it serves as a standalone serverless console for individual and group paging, internal calls, and more. The M100 Dispatch Microphone Console is ideal for a wide range of industries, including emergency services, schools, transportation, and hospitality.
