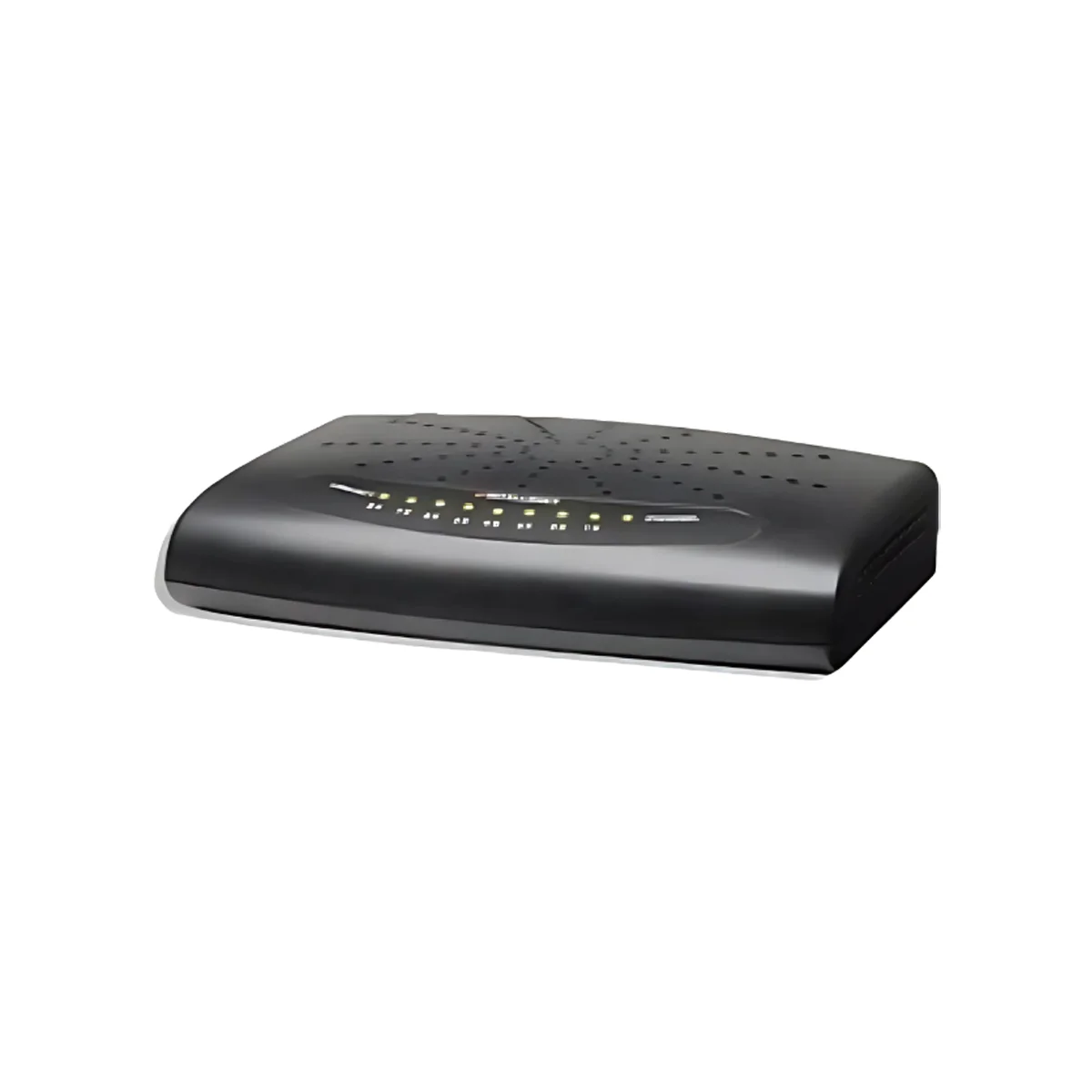

Manhattan 8 Port Ethernet Switch

Standards
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3x (flow control, full duplex mode)

General
Media support:
– 10Base-T Cat3, 4, 5 UTP/STP RJ-45
– 100Base-TX Cat5 UTP/STP RJ-45
Ports:
– 8 RJ-45 10/100 Mbps ports
Packet filter/forwarding rate:
– 148,800 pps (100 Mbps)
– 14,880 pps (10 Mbps)
Switch architecture: store and forward
Buffer memory: 256 kBytes
MAC address table: 1024 entries
Certifications: FCC Class B, CE Mark

LEDs
Power
Link/Act

Power
External power adapter, 9.0 V AC
Power consumption: 2.5 Watts (maximum)

Environmental
Plastic housing
Dimensions: 127 (L) x 84 (W) x 30 (H) mm (5 x 3.3 x 1.2 in.)
Weight: 500 g (1.1 lbs.)
Operating temperature: 0° to 40°C (32° to 104°F)
Operating humidity: 10% to 90% RH, non-condensing
Storage temperature: -40° to 70°C (-40° to 158°F)

Package Contents
Fast Ethernet Office Switch
External power adapter
User manual
