Manhattan Universal AV Laptop Adapter (70W)

Standards and Certifications:
CE
FCC
WEEE
RoHS

Power Cable:
UL
CUL

General:
AC Input: 100 – 240 V; 47 – 63 Hz
DC Output: 12 – 24 V; maximum 4 A; 70 W
Voltage and Current Values (Maximum):

12 V – 4 A
15 V – 4 A
16 V – 3.5 A
18 V – 3.5 A
19 V – 3.5 A
20 V – 3.5 A
24 V – 2.9 A

Input Features:
AC Voltage Rating: 100 – 240 V
DC Voltage Rating: 12 V
AC Voltage Range: 90 – 264 V
DC Voltage Range: 10.8 – 15 V
Frequency Range: 47 – 63 Hz (±1 Hz)
Current: ≤1.2 A at 100 – 240 VAC

Output Features:
DC Output Voltages: 12 / 15 / 16 / 18 / 19 / 20 / 24 V
Current: Up to 4.2 A (constant current)
Power Provided: Maximum 65 Watts
Overvoltage: ≤10%

Protection Features:
Short Circuit: Auto-recovery mode
Overvoltage: Lock mode
Overcurrent: Constant current (CC) mode
Overtemperature: Lock mode
100% tested at high power, with ESD (Electrostatic Discharge) surge protection, and input line protected by fuse

Design:

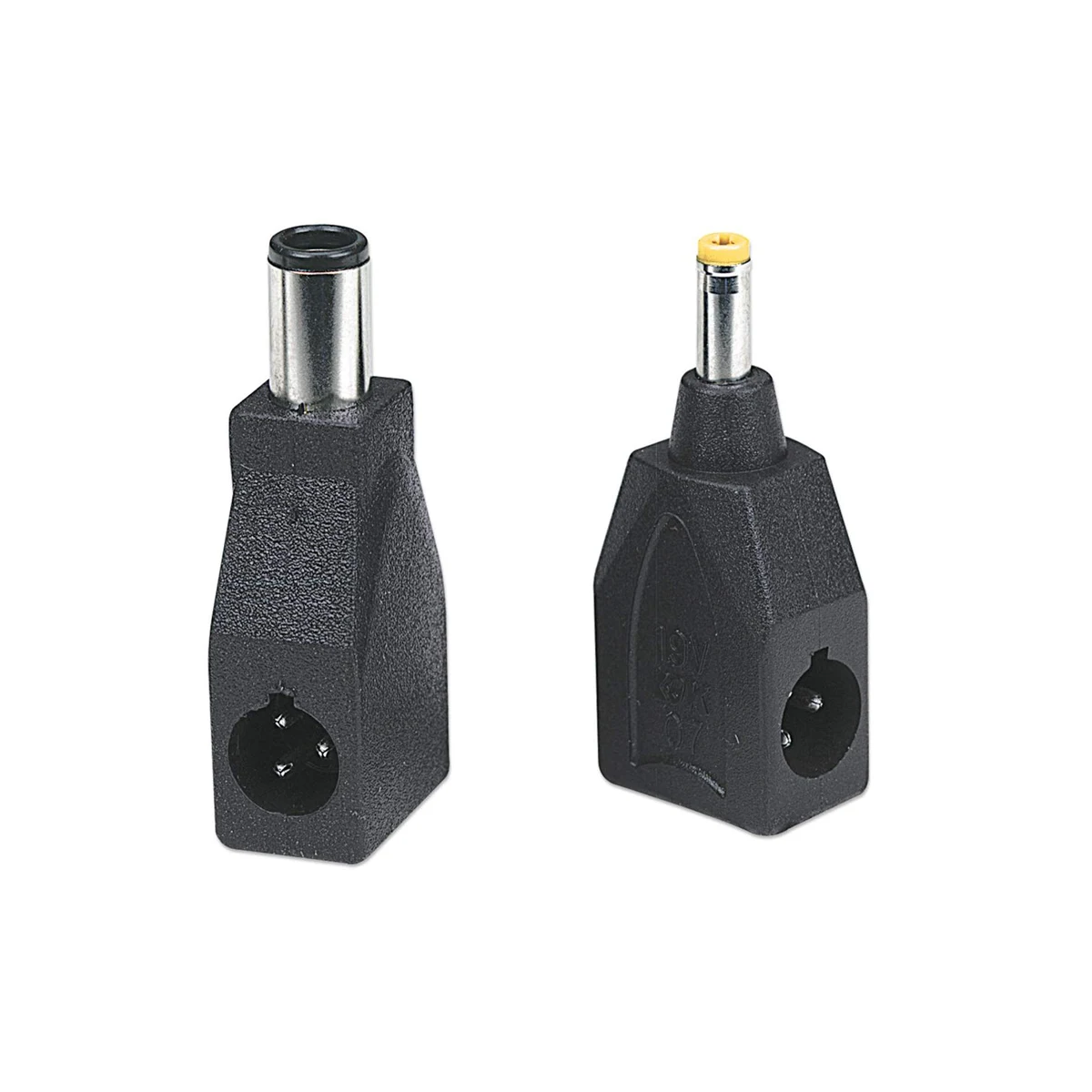

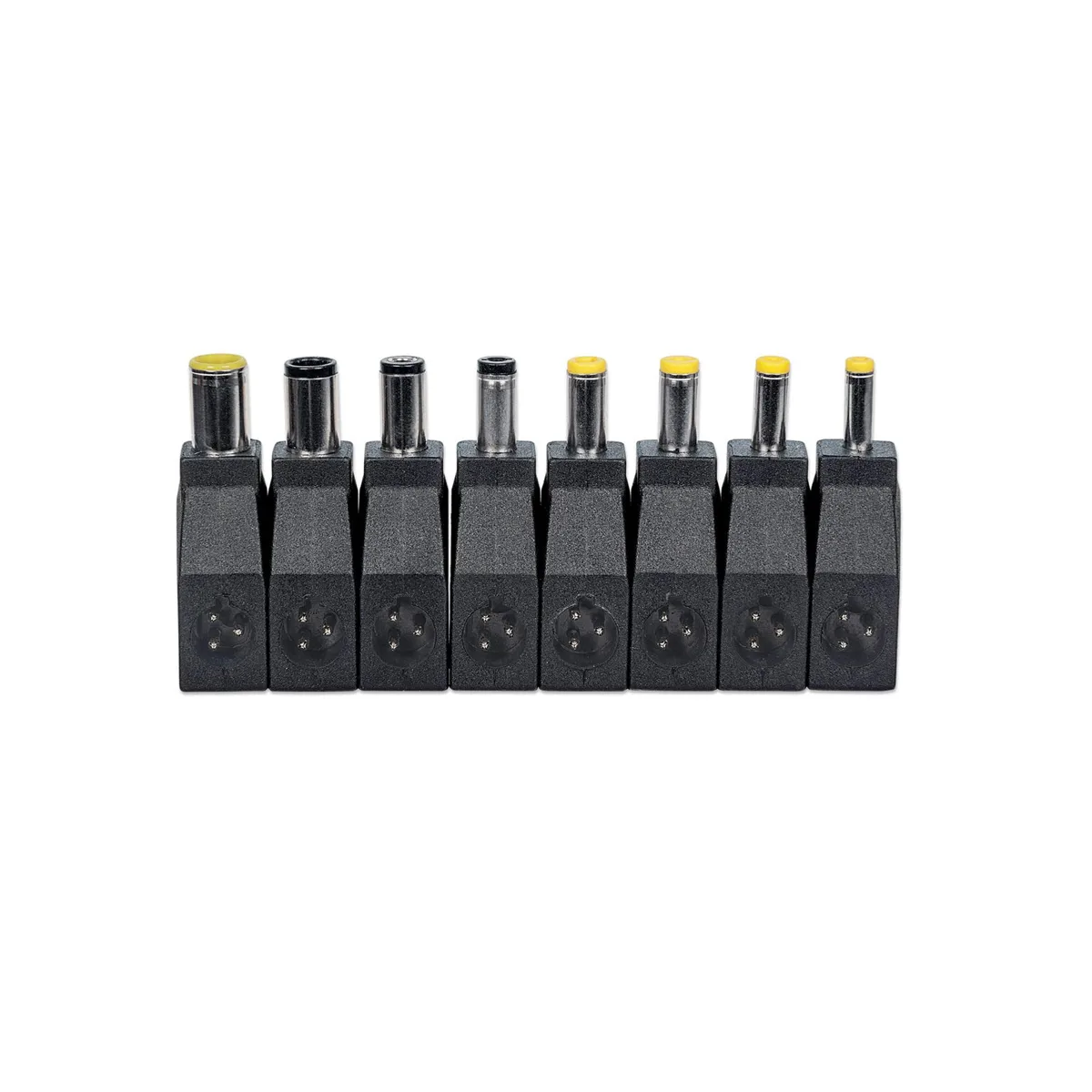

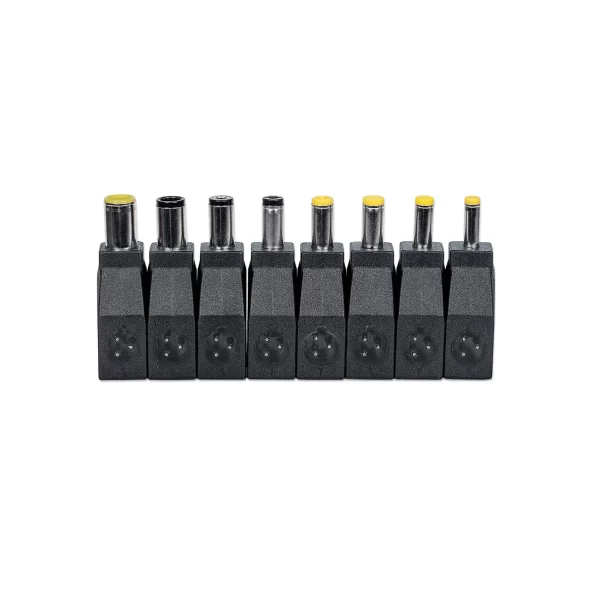

DC Connectors: 5.5 x 1.7 mm, 5.5 x 2.1 mm, 5.5 x 2.5 mm, 4.8 x 1.7 mm, 6.4 x 4.3 mm, 4.0 x 1.7 mm, 3.5 x 1.35 mm, 6.3 x 3.0 mm
Cable (combined length): 1.95 m
Dimensions: 58 x 36 x 115 mm
Weight: 345.9 g

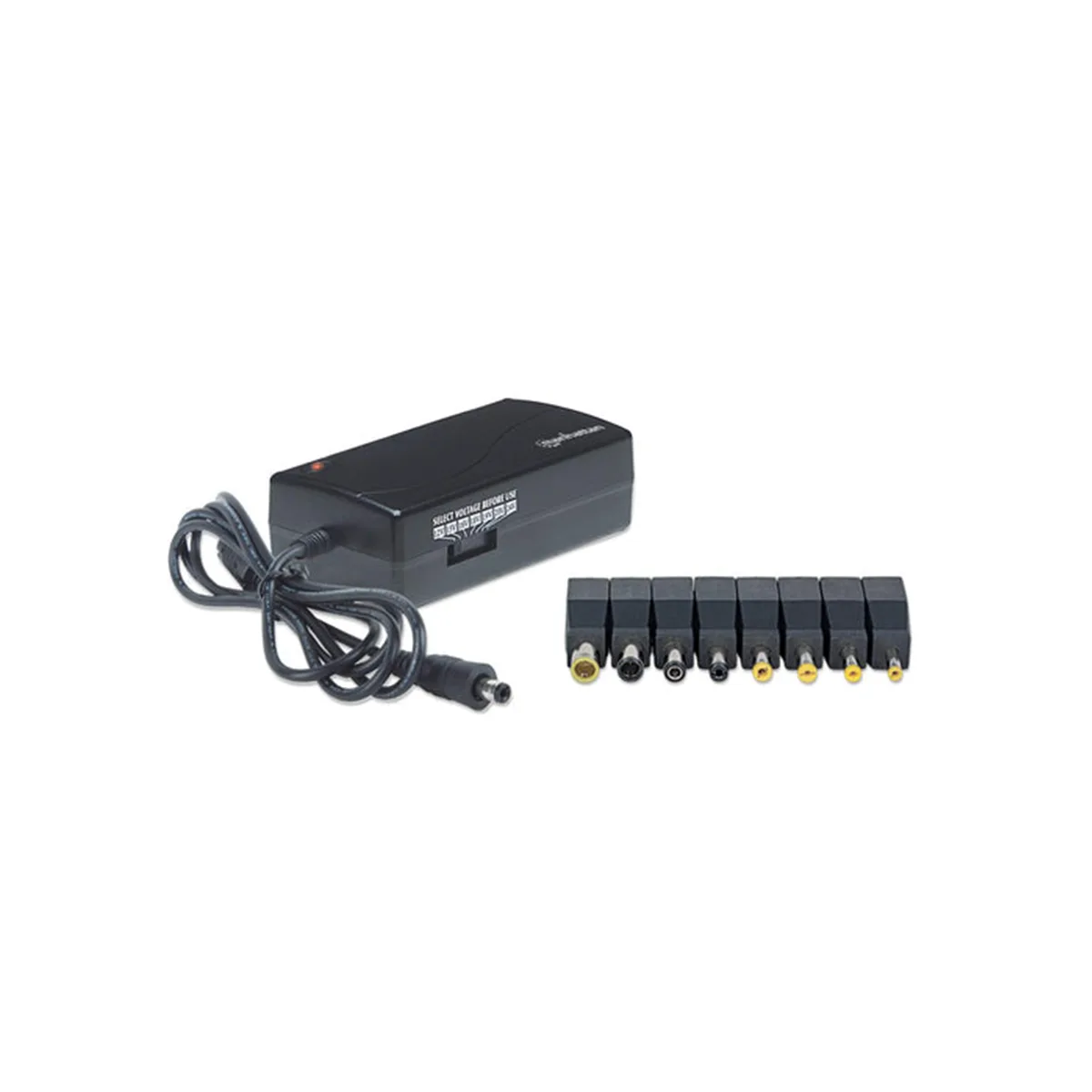

Package Contents:
Power adapter
8 tips and user manual
